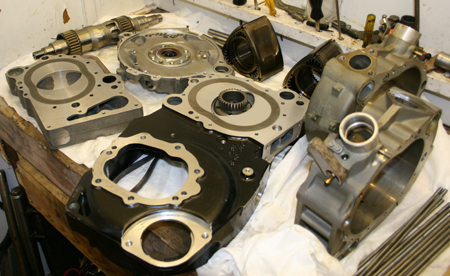

| Cleaning the moly coated endplates and all the other components is a long task. Quick look under the covers shows about half the engine prepared for assembly. |  |

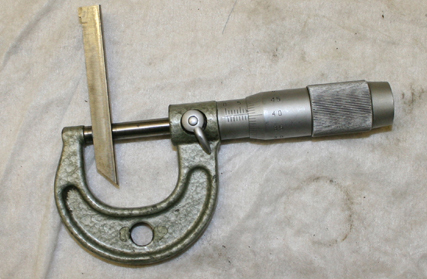

| Each component must be measured to ensure everything goes together well. |  |

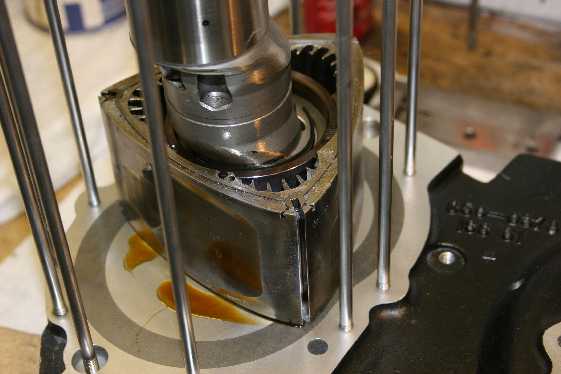

| Once all parts are cleaned and the stationary gears bolted in, it's time to start assembling. First is the right rotor and eccentric shaft gently lowered onto the right endplate. |  |

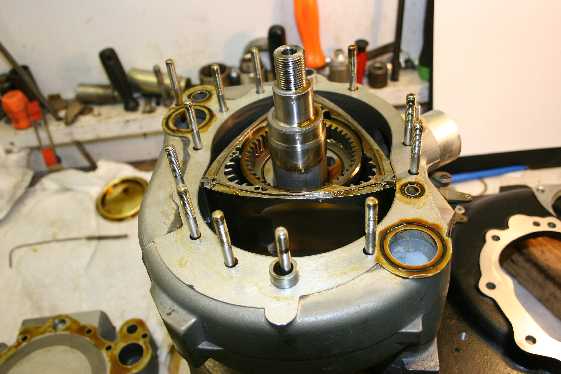

| Followed by the right hand housing, then the three apex seals |  |

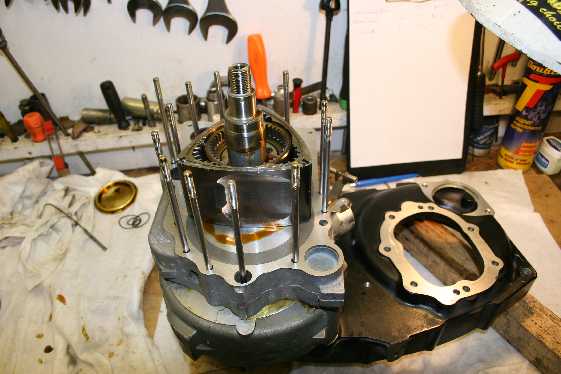

| Next, the intermediate plate followed by the left rotor |  |

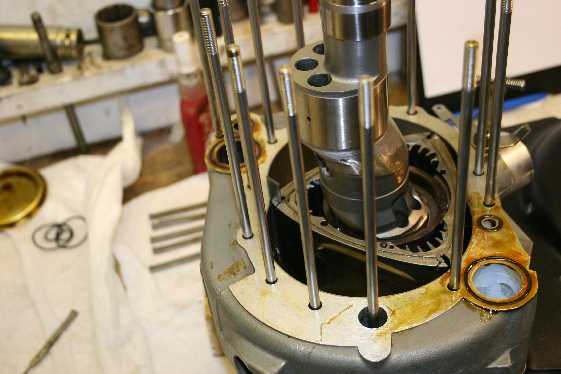

| Finally the left housing and apex seals |  |

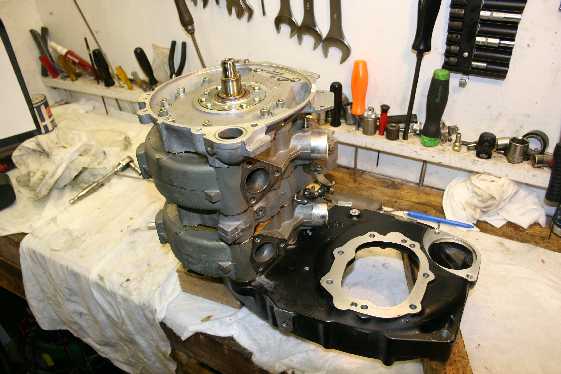

| And last but not least the lid - Left endplate |  |
| Remember, click on thumbnail for full size image | NEXT PAGE |
